☑ Product Specifications
Conductive inks can be categorized into two major types based on the type of resin used: solvent-based conductive inks and water-based (hydrophilic) conductive inks.
Solvent-based conductive inks are formulated by dispersing conductive particles within organic solvents. In contrast, water-based conductive inks utilize aqueous resins and a small amount of hydrophilic solvents to adjust printability before the addition of conductive particles. Because water-based conductive inks are composed of aqueous resins and contain significantly fewer volatile organic compounds (VOCs) than solvent-based versions, they pose a much lower risk to human health and the environment. As such, they are classified as environmentally friendly products.

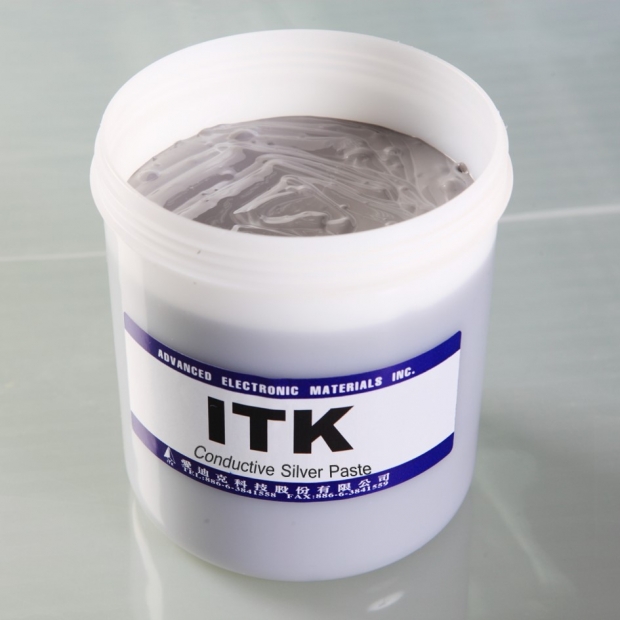

Furthermore, based on the type of conductive particles used, these inks can be classified into three categories: silver paste (silver ink), carbon paste (carbon ink), and silver-carbon paste (silver-carbon ink).
| P/N | Appearance / Color | Sheet Resistance （mΩ/□/mil） |
Pencil Hardness | Adhesion | Solid Content (wt%) |
Viscosity (cps @25℃) |
Curing Conditions (Oven) |
Suggested Applications | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| Solvent-Based Silver Paste（Halogen-Free） | |||||||||
| GA-701B | Silver Grey | ≦30 | 2H | 4B | ~78.5 | 105,000±15,000 | 130℃/30min | Touch Screen - Screen Printing Silver Paste, Fine Line Circuitry | 規格書下載點 |
| GA-6402E | Silver Yellow | ≦40 | F | 4B | ~79 | 30,000±6,000 | 140℃/60min | Touch Screen / Flexible Printed Circuit (FPC) | 規格書下載點 |
| GA-6402F | Silver Yellow | ≦40 | H | 4B | ~78 | 60,000±10,000 | 130℃/30min |
Membrane Switch - Stretchable Silver Paste | 規格書下載點 |
| GA-668E | Silver Black | ≦13 | F | 4B | ~78 | 60,000±10,000 | 130℃/30min | Touch Screen - Low Temperature Curing (85℃/40min，Resistance<15） | 規格書下載點 |
| GA6401#5D1A+ | Silver Yellow | ≦25 | 2H | 4B | ~76 | 53,000±8,000 | 130℃/30min | Touch Screen - Laser Silver Paste (LSP) | 規格書下載點 |
| GA-6405F | Silver Grey | ≦40 | 2H | 4B | ~72 | 40,000±5,000 | 130℃/30min | Touch Screen - Laser Silver Paste (LSP) | 規格書下載點 |
| GA-6405E++ | Silver Grey | ≦55 | 2H | 4B | ~75 | 43,000±7,000 | 130℃/30min | Touch Screen - Laser Silver Paste (LSP) | 規格書下載點 |
| GA-6407B | Silver Grey | ≦35 | 2H | 4B | ~75 | 59,000±3,000 | 130℃/30min | Touch Screen - Capacitive | 規格書下載點 |
| PAX-560 | Silver Grey | ≦25 | H | 4B | ~71 | 40,000±8,000 | 130℃/30min | Touch Screen - Resistive | 規格書下載點 |
| PAX-807D | Silver Grey | ≦35 | 2H | 4B | ~73 | 55,000±10,000 | 130℃/30min | Touch Screen - Laser Silver Paste (LSP), Fine Line Circuitry | 規格書下載點 |
| PAX-808 | Silver Grey | ≦20 | 2H | 4B | ~81 | 245,000±15,000 | 130℃/30min | Touch Screen - Laser Silver Paste (LSP), Fine Line Circuitry | 規格書下載點 |
| PA-591 | Silver | ≦20 | 2H | 100/100 | ~70 | 16,000±3,000 | 120℃/30min | Touch Screen - Excellent Adhesion on Etched Surfaces | 規格書下載點 |
| KA-210 | Silver Yellow | ≦16 | 2H | 100/100 | ~64 | 36,000±6,000 | 130℃/30min | Flexible Printed Circuit (FPC) Applications | 規格書下載點 |
| KAX-810-5#7E | Silver | ≦15 | 2H | 4B | ~78 | 35,000±6,000 | 150℃/30min | Flexible Electronics (PET/TPU) - High Flexibility / Bendability | 規格書下載點 |
| KAX-810-5#9E | Silver | ≦20 | 2H | 4B | ~78 | 38,000±3,000 | 150℃/30min | Smart Textiles (Fabric/TPU) - High Flexibility | 規格書下載點 |
| KAX-810-10 | Silver | ≦35 | H | 4B | ~60 | 15,000±3,000 | 150℃/30min | Smart Textiles (Fabric/TPU) - High Flexibility | 規格書下載點 |
| GA-2038 | Silver | ≦16 | 2H | 100/100 | ~71 | 25,000±5,000 | 120℃/30min | RFID Tags / Inlay Applications | 規格書下載點 |
| GA-2048 | Silver | ≦14 | 2H | 100/100 | 78 | 35,000±5,000 | 120℃/30min | RFID Tags / Inlay Applications | 規格書下載點 |
| SA-513 | Silver Yellow | ≦14 | 2H | 100/100 | ~75.4 | 32,000±8,000 | 60℃/30min | Excellent Conductivity & Low-Temperature Curing | 規格書下載點 |
| SA-516 | Silver Grey | ≦198 | 2H | 100/100 | ~53 | 14,000±3,000 | 130℃/30 min | Conductive Silver Paste - Low Silver Content Requirement | 規格書下載點 |
| SA516 | 銀灰 | ≦198 | 2H | 100/100 | ~53 | 14,000±3,000 | 130℃/30 min | 導電銀漿、低銀含量需求 | |
| P/N | Appearance / Color | Sheet Resistance （mΩ/□/mil） |
推力 | 耐焊錫性 | Solid Content (wt%) |
Viscosity (cps @25℃) |
Curing Conditions (Oven) |
Suggested Applications | Datasheet |
| SV-190-1 | Silver Grey | ≦3 | ≥10 kgf | > 95% | ~83 | 175,000±15,000 | 850℃/10 min | Passive Components - Ceramic Substrate Applications | 規格書下載點 |
| SV-190-2 | Silver Grey | ≦5 | - | > 95% | ~60 | 175,000±15,000 | 850℃/10 min | Passive Components - Ceramic Substrate Applications | 規格書下載點 |
| SV-190-6 | Silver Grey | ≦3 | ≥10 kgf | > 95% | ~86 | 200,000±15,000 | 850℃/10 min | Passive Components - Ceramic Substrate Applications | 規格書下載點 |
| SV-486A | Silver Grey | ≦5 | - | > 90% | ~81 | 115,000±15,000 | 500℃/10 min | Mid-to-High Temp Touch Components - High-Temperature Glass & Ceramic Substrate | 規格書下載點 |
| GA-6406 | 銀灰 | ≦30 | 2H | ||||||
